NMC Racing Formula Dash is a compact dashboard designed for motorsport use. It offers real-time telemetry by streaming its data directly from the vehicle’s ECU over CAN‑bus. It's small size makes it ideal for mounting on a steering wheel or inside a tight cockpit.

Key Specifications

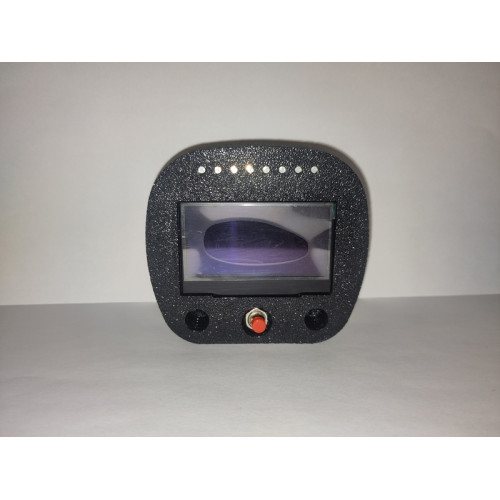

2.42‑inch OLED panel, delivering high contrast for readability in any lighting condition.

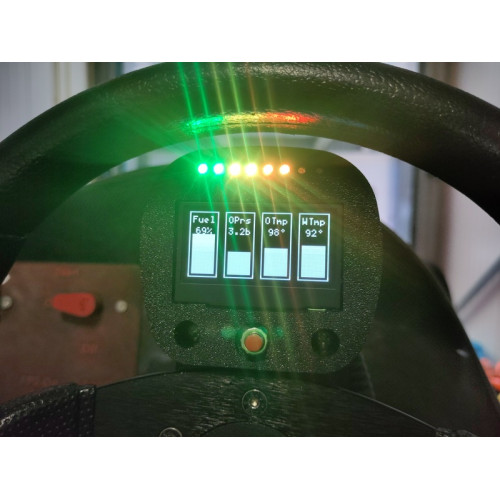

8 RGB high‑brightness LEDs that can be programmed for shift lights and alerts.

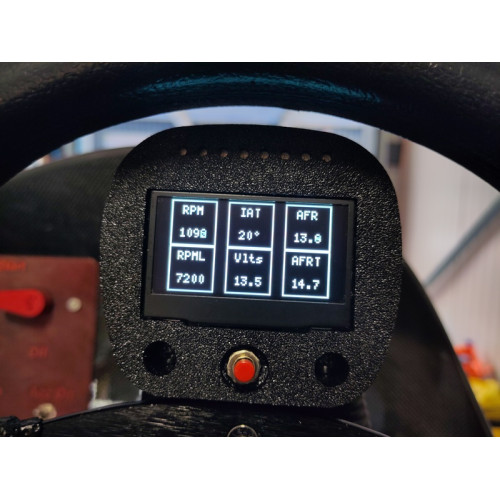

Using the dedicated configuration software, up to 4 screens can be defined. Each screen can host up to 8 gauges.
Alerts can be configured independently for each defined gauge.

Connectivity

Power is supplied through a 12V fused input.
Core data is transmitted over standard CAN‑bus (CAN High/Low).
Optionally, one fuel level sender can be connected.

Compatibility

The display pulls data directly from the ECU via CAN bus and is ready‑to‑use with the following ECUs out of the box: Motorsport Electronics ME221/ME442, Haltech, and rusEFI.
If your ECU is not listed, the configuration software can import a .dbc file. Every signal defined in that file can be mapped to a gauge on the screen.
Fuel level senders with ranges from 0-1000 ohms can be connected.

Setup and Shipping

There are no pre‑configured data sets - every display is configured by the user with the provided software.
The configuration software runs on Windows & major Linux distributions and can be freely downloaded and used before you commit to purchase.
Each unit is custom‑assembled per order and shipped within 5 business days after order confirmation.
