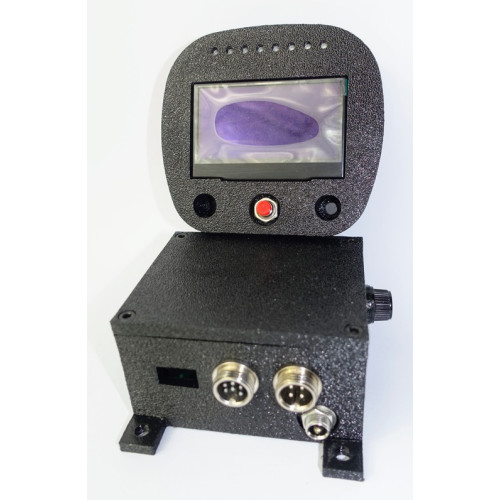

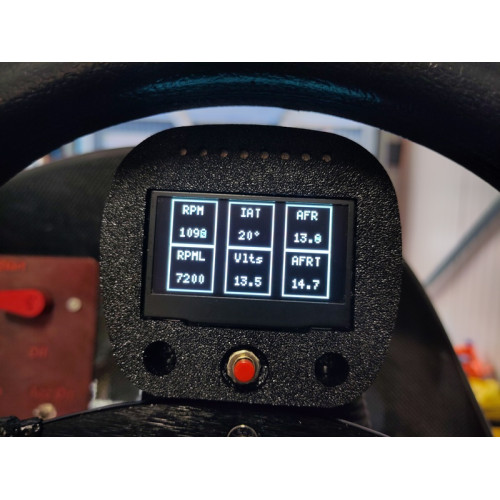

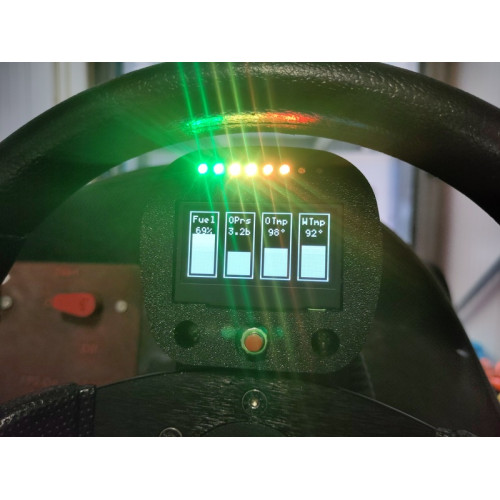

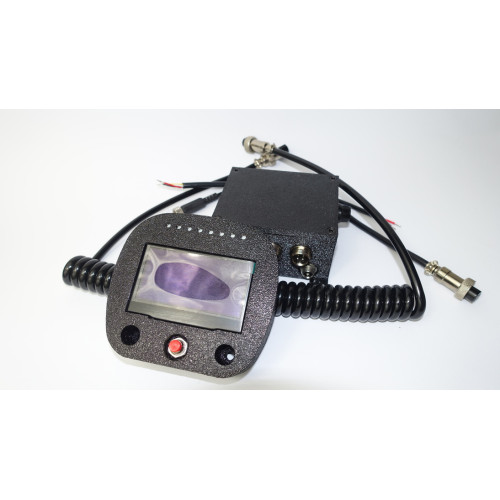

NMC Racing Formula Dash is a compact dashboard designed for motorsport use. It offers real-time telemetry by streaming its data directly from the vehicle’s ECU over CAN‑bus. Its small size makes it ideal for mounting on a steering wheel or inside a tight cockpit.

Key Specifications

3D-printed TPU case, highly resistant to impact and vibration.

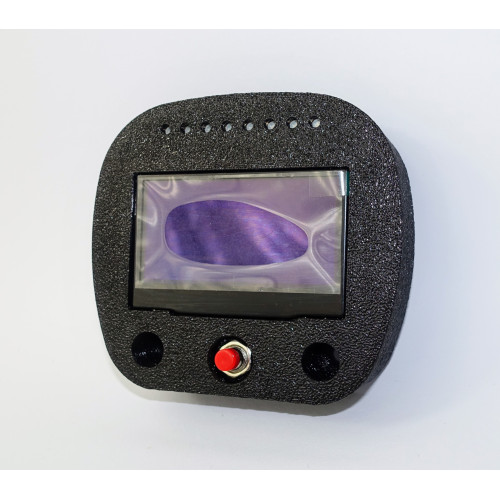

2.42" OLED panel, easy to read in any lighting condition.
8 RGB high‑brightness LEDs, programmable for shift lights and alerts.
Using the dedicated configuration software, up to 4 screens can be defined.
Each screen can host up to 8 gauges, for a maximum total of 32.
Alerts can be configured independently for each defined gauge.

ECU Compatibility

Compatible ECUs: Motorsport Electronics ME221/ME442, Haltech, rusEFI.

The dashboard pulls data directly from the ECU via CAN bus. If your ECU is not listed, the configuration software can import your ECU's CAN specification from a .dbc file. Every signal defined in that file can be mapped to a gauge on the screen.

Is there a .dbc file not available for your ECU? Get in touch with your car's details, for certain manufacturers a compatible CAN specification file can be generated from information available online.

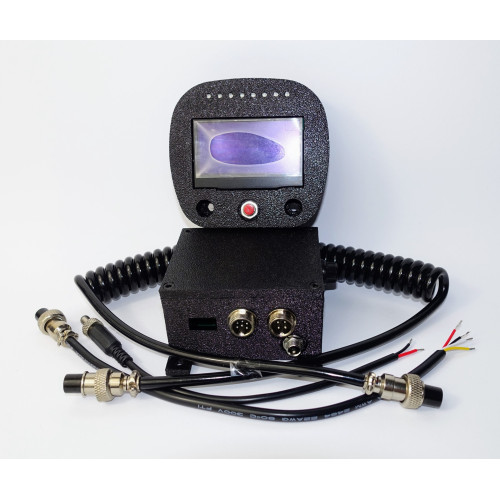

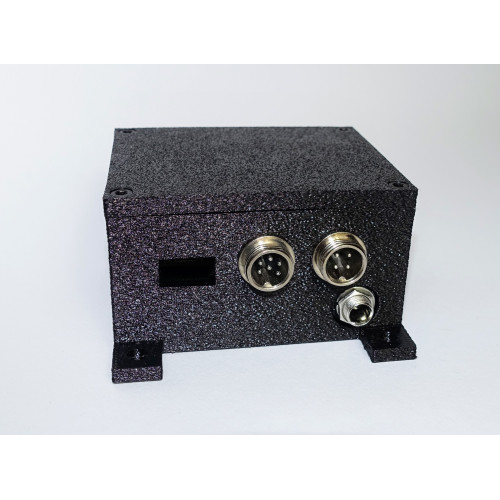

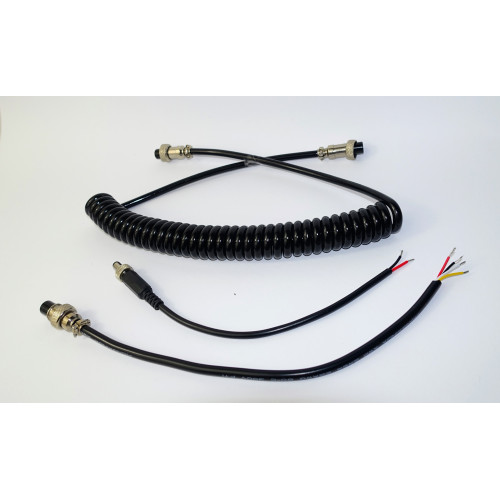

Connectivity

Power is supplied through a 12V fused input.
Core data is transmitted over standard CAN‑bus (CAN High/Low).
Optionally, one fuel level sender can be connected.

Misc Info

There are no pre‑configured screens - every display is configured by the user with the provided software.
The configuration software runs on Windows & major Linux distributions and can be freely downloaded and used before you commit to purchase.
Each unit is custom‑assembled per order and shipped within 5 business days after order confirmation.
